Sensores Fotoelétricos

Início/Produtos/Sensoriamento/Sensores Fotoelétricos
Sensores FotoelétricosRTI Automação2018-10-08T10:38:18-03:00

S60 - Contraste

Available in 50×50 Standard “One for All” case with improved performance; offering a complete range and standardization of the same mechanical features for all optic functions; NO-NC outputs with 2m Cable M12 rotable conector; 10…30Vdc; Trimmer adj Trimmer L/D; IP67.

TL46 - Contraste

Slot size 3mm; High resolution up to 2mm label gap; M8 connector with PNP or NPN output; M12 connector with PNP/NPN output and external teach-in; Operating distance 6-12mm; Mark/Background automatic, manual and dynamic setting; Trimmer or Teach-in setting with 4 digit display version; precision model with less than 7 us jitter; Configurable NPN/PNP and 0-5 V analogue output; IP67.

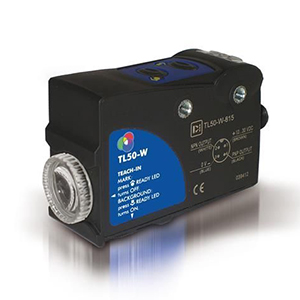

TL50 - Contraste

Recommended where a cost reduction is requested, without compromising performances; Operating distance 6-12 mm (up to 60 mm with lens) 15KHz switching frequency; 80X55X31 mm; 10…30Vdc; 1 PNP output / 1 NPN output; Teach-in push-button; IP67

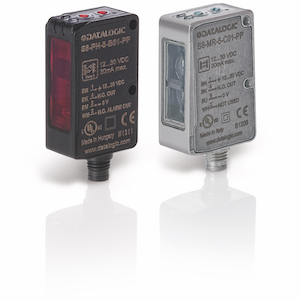

S8 - Distância

Background suppr. 50-300 mm, Laser 20-200 mm Background suppr. for Clear and Shinly objects RRX pol. 5m, Laser 10 m, Coaxial for Transp. 2 m Contrast sensor 6-12 mm, 25 kHz switch. freq. Luminescent sensor 10-30 mm, 2 kHz switch. Freq; Trimmer adj Trimmer L/D Teach In;  42x25x14mm; PNP or NPN N.O. M8 4poles Pig Tail M12 4poles; IP67

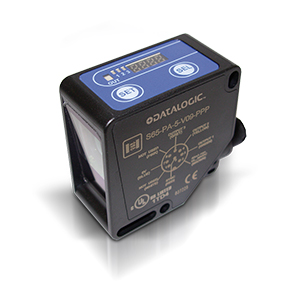

S65W - Contraste e Cor

Compacto de 50x50x25 mm e funções avançadas de sensor de cor com emissão de RGB e algoritmo de detecção de intensidade e / ou cromaticidad; 3 independent NPN or PNP outputs RS 485 serial interface; White LED; 10…30Vdc; IP67.

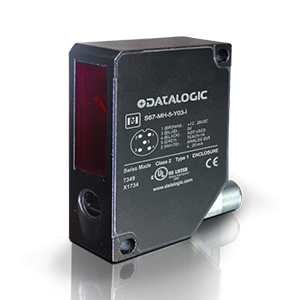

S67 - Distância

Accurate and precise laser distance sensor with submillimetric resolution; Response time of less than 0,9 ms on short range; Resolution of 10 um @ 50 mm distance on white 90% remission; CLASS 2 According to IEC 60825-1 (2014); 12…28Vdc; IP67.

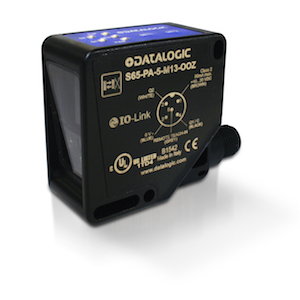

S65M - Distância

Long Range Background Suppressor based on light Time Of Flight technology; 50 x 50 x 24 mm; PNP/NPN; M12 5pin; Operating Distance: 0.1..5 m (90% white) / 0.1..4 m (18% grey) / 0.1..2.5 m (6 % black); 24 Vdc; IP67.

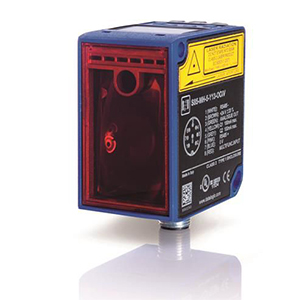

S85 - Distância

Long distance measurement and object positioning up to 10 or 20m range; M12 – 5 poles; 58 x 61 x 37 mm;  Analogue output: Configurable (0.2-10V / 4-20 mA /scalable) short-circuit protection ; CLASS 2 According to IEC 60825-1 (2007) ; 24 Vdc; IP67.

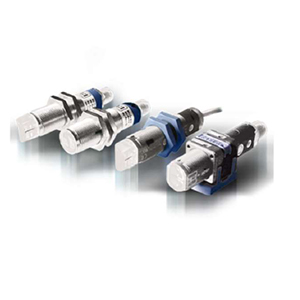

S50 – Proximidade Difuso Retroreflexívo

Diffuse proximity 10, 40, or 70 cm, and Laser 35 cm Fix-focus 100 mm and Bkgd suppr. 50-100 mm Polarised RRX 4 m, Laser 16 m, for Trasparent 1m Through-beam 20 m and Laser 60 m Contrast sensor 10 mm and Luminescence 20 mm 2m Cable or M12 4poles; PNP or NPN NO/NC;  connector with NO-NC outputs Axial or Radial optics, Plastic flat or Metal M18 case; IP 67

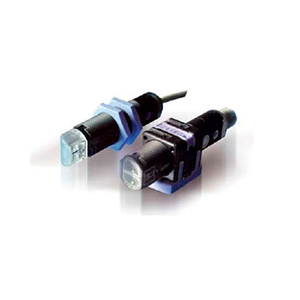

S51 - Proximidade Difuso Retroreflexívo

Wide range: suitable for all the industrial applications Axial or radial optics; 10…30Vdc; Switching frequency: 500 Hz (120 Hz mod.F00); PNP or NPN NO Cable M12 4 poles; Trimmer adj; Housing material: Nickel-plated brass; Connections: 2 m cable ? 4 mm / M12 – 4 pole conector; IP67 Type 1 enclosure

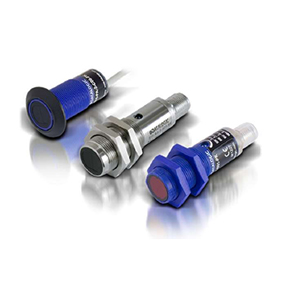

S15 - Proximidade Difuso Retroreflexívo

Diffuse proximity 10, 35, or 100cm, fix focus 5cm; Background suppression 40-120mm; Retroreflex 5 m, Polarised 4m, for Trasparent 1m; Through beam 20m; L/D input, 2m Cable, M12 connector; Diffuse proximity 10, 40, or 70cm, and Laser 35cm; Background suppr. 50- 100mm; Polarised RRX 4m, Laser 16 m; Through-beam 20m and Laser 60m; Contrast sensor 10mm, Luminescence sensor 20mm; 2m Cable or M12 connector with NO-NC outputs

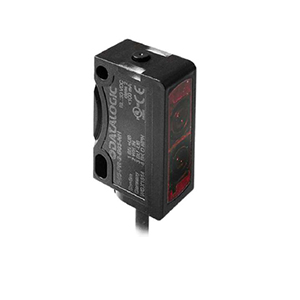

S45 - Distância Difuso

Diffuse proximity 800 mm and Laser 250 mm Bkgd suppr 200 or 400 mm and Laser 120 mm RRX pol 6 m, Laser 13 m, Coaxial 2 m Through-beam 13 m and Laser 18 m Distance sensor 20-80 mm or 30-200 mm; 34x20x12mm; 10…30Vdc; Teach In; NO-NC outputs with 2m Cable or M8 connector; IP67

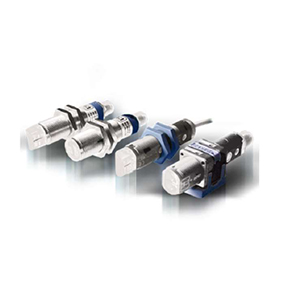

S100 - Universal

Diffuse proximity 10, 40, or 70 cm, and Laser 35 cm Fix-focus 100 mm and Bkgd suppr. 50-100 mm Polarised RRX 4 m, Laser 16 m, for Trasparent 1m Through-beam 20 m and Laser 60 m Contrast sensor 10 mm and Luminescence 20 mm 2m Cable or M12 4poles; PNP or NPN NO/NC;  connector with NO-NC outputs Axial or Radial optics, Plastic flat or Metal M18 case; IP 67

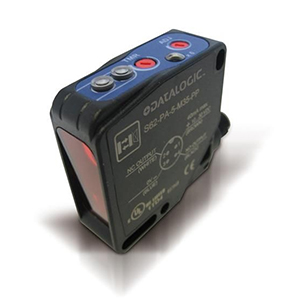

S62 – Difuso Compacto

Wide range: suitable for all the industrial applications Axial or radial optics; 10…30Vdc; Switching frequency: 500 Hz (120 Hz mod.F00); PNP or NPN NO Cable M12 4 poles; Trimmer adj; Housing material: Nickel-plated brass; Connections: 2 m cable ? 4 mm / M12 – 4 pole conector; IP67 Type 1 enclosure

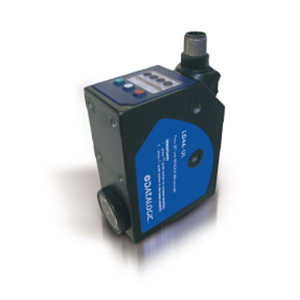

LD60 - Luminescência

5 UV high power LED emission and high sensitivity for luminescent objects detection; Operating distance 10-20, 20-40, or 30-50 mm Fast response time 250 µs and switching freq. 2 kHz Standard metal case with IP67 protection; 81X58X31 mm; 10…30Vdc; NPN and PNP outputs and 0-5 V analogue out; Teach-in setting 5 segments bar-graph for sensitivity level indication; IP67.

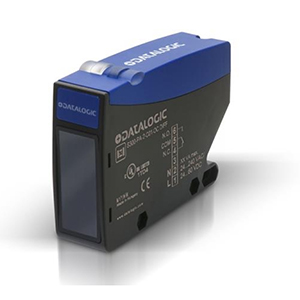

S300 - Difuso Outdoor

Diffuse proximity 800 mm and Laser 250 mm Bkgd suppr 200 or 400 mm and Laser 120 mm RRX pol 6 m, Laser 13 m, Coaxial 2 m Through-beam 13 m and Laser 18 m Distance sensor 20-80 mm or 30-200 mm; 34x20x12mm; 10…30Vdc; Teach In; NO-NC outputs with 2m Cable or M8 connector; IP67
